Product \ APC Industrial UPS System

Product Details:

Brand

APC

As per the increasing demands of the customers, we are involved in offering best quality of APC Industrial UPS Systems.
This Power Supply is provided by us to customers as per their requirements. Uninterruptible Power Supply is widely used in an application can still provide a viable output without an input supply.

Features

Perfect finish
Fine quality
Highly appreciated

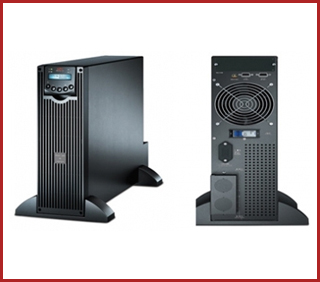

Smart-UPS On-Line

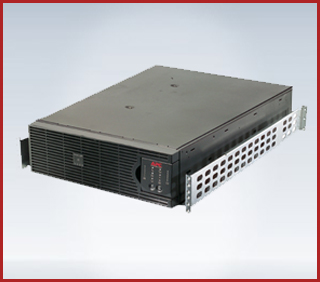

APC Smart-UPS RC 10000VA 230V for India - No Batteries
APC Smart-UPS On-Line, 8000 Watts / 10
kVA, Input 230V / Output 230V , Interface Port
DB-9 RS-232, SmartSlot , Extended runtime
model , Rack Height 3 U
Includes: CD with software, Rack Mounting
brackets, Smart UPS signalling RS-232 cable,
User Manual

Technical Specifications
Output

Output Power Capacity 8000 Watts / 10 Kva
Max Configurable Power 8000 Watts / 10 Kva
Nominal Output Voltage 230V
Output Voltage Note Configurable for 220: 230 or 240 nominal output voltage
Efficiency at Full Load 90.0%
Output Voltage Distortion Less than 3%
Output Frequency (sync to mains) 50/60 Hz /- 3 Hz user adjustable /- 0.1
Other Output Voltages 220,240
Crest Factor 3 : 1
Waveform Type Sine wave
Output Connections
(1) Hard Wire 3-wire (H N G)
Bypass Built-in Bypass

Input

Nominal Input Voltage 230V
Input Frequency 40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH N G)
Input voltage range for main operations 160 - 280V
Input voltage adjustable range for mains operation 100 - 280V
Other Input Voltages 220,240
Maximum Input Current 60A
Input Breaker Capacity 63.0 A

Batteries & Runtime

Nominal Input Voltage 230V
Input Frequency 40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH N G)
Input voltage range for main operations 160 - 280V
Input voltage adjustable range for mains operation 100 - 280V
Other Input Voltages 220,240
Maximum Input Current 60A
Input Breaker Capacity 63.0 A

Battery Type No internal battery - uses external battery system
Available Battery Slots 1Replacement battery cartridge note Unit ships without batteries
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at
typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management

Interface Port(s) DB-9 RS-232, SmartSlot
Available SmartSlotTM Interface Quantity 1
Control panel
LED status display with load and battery bar-graphs and On Line: On Battery: Replace Battery:
Overload and Bypass Indicators
Audible Alarm Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Emergency Power off (EPO) Optional

Surge Protection and Filtering
